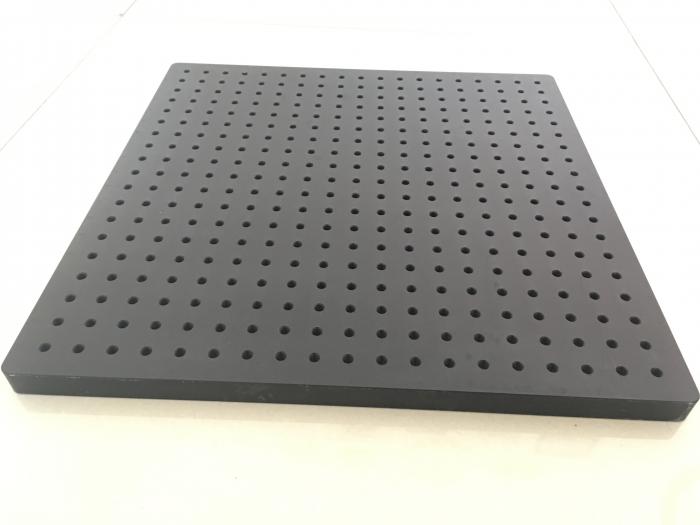

CMM Fixture Plate

Plate Size:the size could be customized from your requirement
Material:Aluminum Fixture Plates
Thickness:25mm

Aluminum Fixture Plates

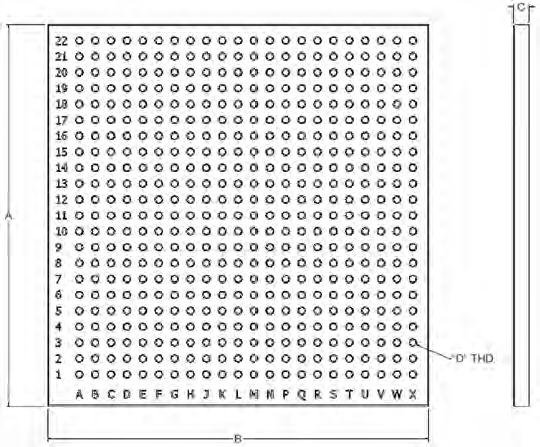

Length A	Width B	Thickness C	Thread D	Hole Spacing
300mm	300mm	25mm	M8 x 1.25	25mm
500mm	500mm	25mm	M8 x 1.25	25mm
700mm	700mm	25mm	M8 x 1.25	25mm

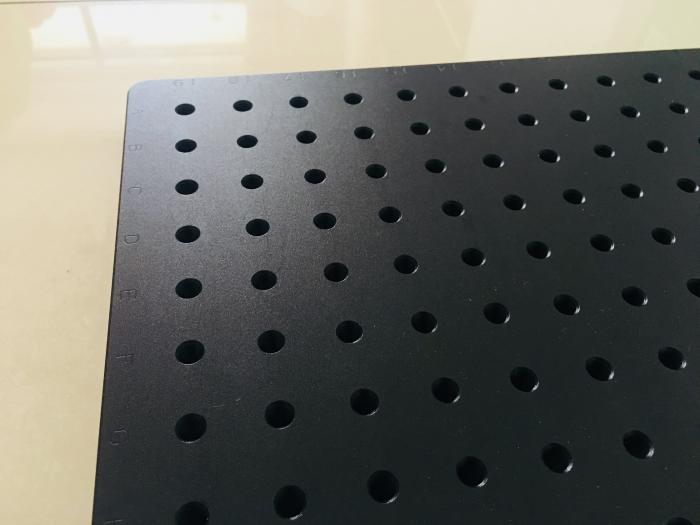

* Alpha numeric grid pattern

* Black hard coat anodized

*Custom sizes quoted upon request
